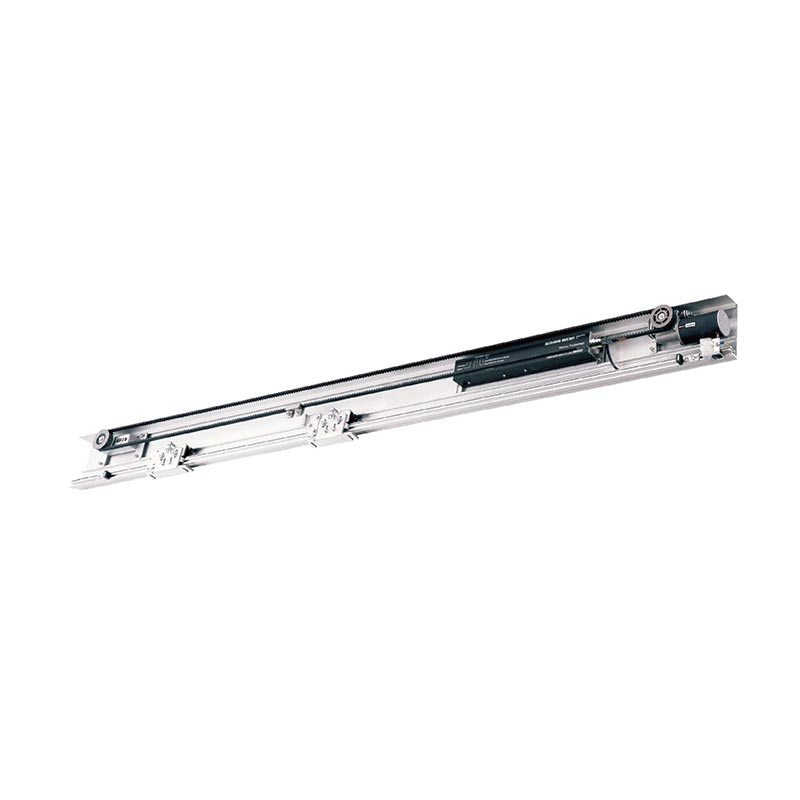

150 kg Automatic Sliding Operator

Yog tias koj tab tom nrhiav tus tsim nyog 150 kg Tsis Siv Neeg Sliding Operator, koj tuaj yeem koom tes nrog OWNIC. Peb tos ntsoov yuav dhau los ua koj tus neeg xa khoom mus sij hawm ntev hauv Suav teb. Ntxiv nrog rau cov khoom siv cuam tshuam, peb kuj tuaj yeem muab cov kev daws teeb meem rau kev kho mob thiab kev lag luam qhov rooj.

Xa lus nug

Product Description

OWNIC yog cov chaw tsim khoom ntawm 150 kg Tsis Siv Neeg Sliding Operators. Peb ua haujlwm 50,000-square-meter ntse Hoobkas muaj peev xwm txhawb nqa ob qho kev txiav txim ntau thiab kev daws teeb meem. Rau feem ntau ntawm cov qhov rooj sab nrauv nyob rau hauv cov tsev lag luam, ib tus neeg teb xov tooj tsis siv neeg zawv zawg qhov rooj ntawm qhov kev qhia tshwj xeeb no ntau tshaj qhov txaus.

Technical Data:

Hom Qhov Rooj:	Qhib ib leeg Ob chav qhib
Max Peev Xwm:	150 kgs 2 x Max 150 kgs
Qhov Rooj Dav:	DW = 750 ~ 1600mm DW = 650 ~ 1250mm
Net Qhov dav dav:	W = 1450 ~ 6100mm W = 2500 ~ 6100mm
Kev teeb tsa hom:	Nto Installation
Lub zog Voltage:	AC220V ± 10%, 50 ~ 60Hz
Qhib Ceev:	250 ~ 500mm / s (kho tau)
Kaw Ceev:	250 ~ 500mm / s (kho tau)
Slow Speed:	Tsis siv neeg
Tuav Sijhawm Qhib:	2 ~ 20s (kho tau)
Kev siv fais fab:	150 W
Ua haujlwm kub:	-20 ℃ ~ + 50 ℃

150 kg Automatic Sliding Operator

Lub 150 kg Tsis Siv Neeg Sliding Operator ua haujlwm li cas?

1. Kev Ua Haujlwm Sensor: Tus neeg teb xov tooj zawv zawg qhov rooj kuaj pom txoj hauv kev ntawm tib neeg lossis cov khoom siv ntawm infrared lossis microwave sensors.

2. Tswj System Teb: Lub kaw lus tswj tau txais lub teeb liab thiab teeb tsa cov lus txib kom qhib qhov rooj.

3. Tsav-Driven zawv zawg: Lub cev muaj zog tsav lub tshuab, synchronously coj lub qhov rooj nplooj kom swb smoothly qhib raws nws txoj kev.

4. Ncua Sijhawm Kaw: Lub qhov rooj kaw tom qab lub sijhawm teem sijhawm ua ntej, kom ntseeg tau tias muaj txiaj ntsig zoo thaum txuag lub zog.

Kev sib piv ntawm 150 kg Automatic Sliding Door Operator vs 100 kg Light-Duty Series

	150 kg Automatic Sliding Door Operator	100 kg Lite Door Operator
Qhov chaw	High-frequency siv, Main thoroughfare, hnyav ib puag ncig	Kev siv tsawg zaus, kev pabcuam raws, kev siv nyiaj-sensitive scenarios
Nruab Nrab Txhua Hnub Qhib / Kaw Cycles	≥500 cycles (Tsim lifespan: ≥1 lab cycles)	≤ 300 cycles (Rated lifespan: kwv yees li 500,000 cycles)
Cov ntaub ntawv taug qab	Reinforced Aluminium Alloy / Stainless Hlau (Yeem)	Standard aluminium alloy
Pulley System	Muaj-qib Nylon + Hlau Bearings (Self-lubricating)	Plastic Pulleys (qhov yooj yim hnav tsis kam)
Kev Nyab Xeeb Redundancy	Triple Anti-pinch Protection (Infrared + Mechanical Edge + Tshawb Pom Tam Sim No)	Dual anti-pinch tiv thaiv (Infrared + Obstacle Rebound)
Ntse Expandability	Cov yam ntxwv nta: PLC interface, cov xwm txheej tawm tswv yim, kev tshuaj ntsuam xyuas chaw taws teeb	Yuav tsum xaiv ntse module

Core Zoo

OWNIC cov neeg siv lub qhov rooj zawv zawg yog cov khoom siv txhim khu kev qha thiab ruaj khov, boasting robust compatibility uas tso cai rau lawv siv zog tsav ob-glazed hollow iav qhov rooj. Feem ntau, cov qhov rooj panels hnyav ntawm 80 kg thiab 120 kg; peb lub peev xwm tsim tau 150 kg-nrog rau kev nyab xeeb ua haujlwm-ua kom muaj kev ua haujlwm zoo heev.

Piv nrog rau peb 100 kg lub teeb-lub luag hauj lwm qauv, lub 150 kg version nta ho ntau dua lub cev muaj zog torque. Peb pom zoo cov qauv no rau cov khw muag khoom nkag mus rau kev sib tw los yog qhov sib txawv ntawm huab cua sib txawv, vim nws ua kom muaj zog thiab ruaj ntseg kaw qhov rooj.

Raws li cov chaw tsim khoom nrog cov kws tshaj lij kev txawj ntse, peb tau ntxiv dag zog rau peb cov iav sab hauv thiab tsav cov hlua kom tiv taus qhov chaw muaj kev kub ntxhov, muaj peev xwm ua tau ntau txhiab qhov qhib thiab kaw ib hnub.

Txawm tias thaum txhawb nqa lub qhov rooj hnyav, lub kaw lus ua rau kev txo qis thiab tsis muaj qhov kawg ntawm ob qho tib si qhib thiab kaw, tiv thaiv kev cuam tshuam zoo.

Vim li cas thiaj xaiv OWNIC?

OWNIC tau tshwj xeeb hauv kev ua haujlwm ntawm lub qhov rooj tsis siv neeg rau ntau tshaj 40 xyoo. Nrog kev paub tab thiab ruaj khov thev naus laus zis uas dhau mus ua ntu zus thiab hloov kho dua tshiab, peb cov khoom lag luam ua tau raws li qhov xav tau hloov zuj zus ntawm kev lag luam thoob ntiaj teb. Peb lub Hoobkas ua raws li cov qauv kev ua tau zoo, siv cov kab ntau lawm kom ntseeg tau tias ob qho tib si sib xws thiab siab precision.

Dhau li ntawm lub qhov rooj xwb, peb cov khoom siv cuam tshuam kuj tau siv dav hauv tsev kho mob, cov tsev lag luam, thiab chaw lag luam.

Peb muab cov kev pabcuam OEM, muab cov kev daws teeb meem raws li cov kev cai tshwj xeeb ntawm cov haujlwm sib txawv-ua kom haum rau qhov sib txawv qhov hnyav, kev siv zaus, thiab ib puag ncig. Tsis tas li ntawd, kev koom tes nrog peb pab koj nkag mus rau kev saib xyuas mus sij hawm ntev thiab kev txhawb nqa.
