Tsis Siv Neeg Telescopic Qhov Rooj

OWNIC yog ib tus neeg muag khoom txhim khu kev qha thiab chaw tsim khoom ntawm lub qhov rooj telescopic tsis siv neeg. Peb cov khoom muaj cov qauv tsim tshwj xeeb, tau tswj hwm los ntawm kev tswj tsis siv neeg, thiab muaj kev ua haujlwm siab, ua rau lawv tsim nyog rau thaj chaw uas xav tau kev nkag loj.

Xa lus nug

Product Description

OWNIC yog lub chaw tsim khoom ntawm lub qhov rooj telescopic tsis siv neeg, muab cov kev pabcuam OEM thiab cov nqi sib tw. Yog tias koj xav tau kev ua haujlwm siab thiab xav tau qhov qhib dav dua li qhov rooj tsis siv neeg tus qauv muab, cov khoom no yog qhov kev xaiv zoo heev.

Daim ntawv thov:

loj nkag qhib, maximizing qhov chaw usable ntawm lub tsev nkag mus.

Khoom nta:

1.Qhov kev tswj hwm nta lub khoos phis tawj built-in rau kev hloov kho ntse thiab kev tswj cov txheej txheem automated. Nws suav nrog tsis siv neeg thauj khoom adaptation, yuav tsum tsis muaj kev hloov kho rau lub qhov rooj nplooj qhov hnyav, ua kom pom kev zoo kev ua haujlwm txhua lub sijhawm.

2.Bidirectional obstacle nrhiav tau nrog tsis siv neeg thim rov qab rau kev txhim kho kev nyab xeeb. Cim lub cev muaj zog xauv muaj nuj nqi tshem tawm qhov xav tau ntawm cov tshuab ntsuas phoo kom ua tiav kev tswj xyuas.

3.Remote tswj muaj peev xwm rau txhua qhov kev hloov kho, ua kom yooj yim ua haujlwm thiab txhim kho kev ua haujlwm zoo.

4.Smooth thiab teb qhib ceev qhia txog tus neeg siv-centered tsim.

Technical Data:

Hom qhov rooj	Ib leeg qhib
Qhov Rooj Qhov hnyav	Max 2 X 150 KG
Clear Qhib dav	1200-2700 hli
Qhov hluav taws xob	AC 220V ± 10%, 50 ~ 60HZ
Qhib ceev:	300-500MM / S (kho tau)
Kaw ceev:	250-500MM / S (kho tau)
Deceleration:	Tsis siv neeg
Tuav Sijhawm Qhib:	2 ~ 20S (kho tau)
Kaw quab yuam F:	> 100 N
Manual pushing quab yuam:	<100 N
Kev siv fais fab:	<150 W
Ua haujlwm kub:	-20 ° C ~ + 50 ° C

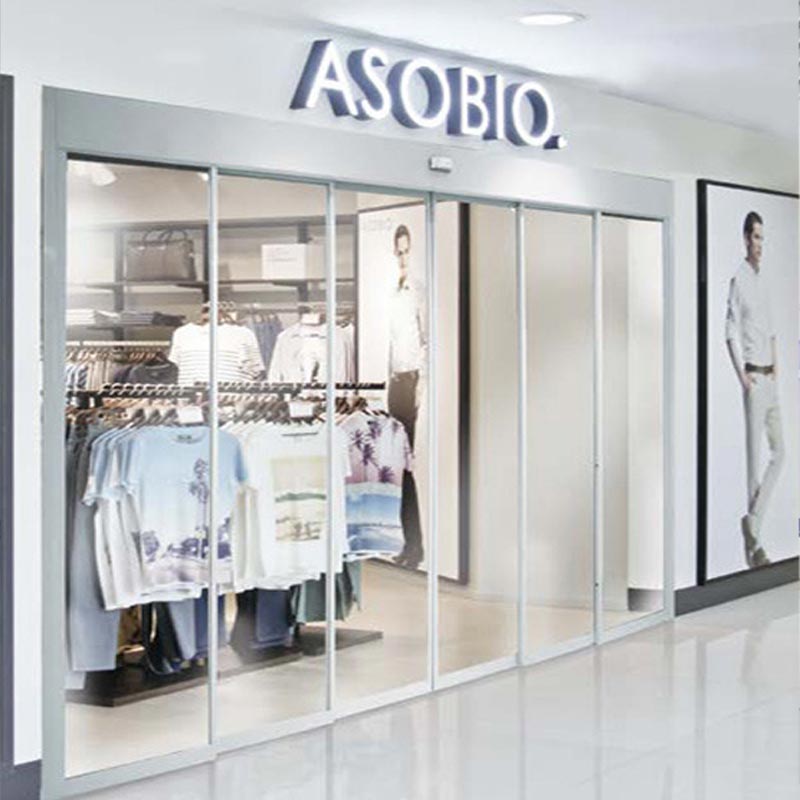

Automatic Telescopic Door

Lub qhov rooj tsis siv neeg telescopic txawv li cas ntawm lwm lub qhov rooj tsis siv neeg?

Yam ntxwv	Tsis Siv Neeg Telescopic Qhov Rooj	Ib-Nplooj Sliding Qhov Rooj	Ob-Nplooj Bi-Parting Sliding Qhov Rooj	Automatic Folding Qhov Rooj
Qhov siab tshaj qhov dav	1200-2700 hli (2-4 panels)	≤1000 hli	≤ 2000 hli	1500-3600 hli
Lateral Space Requirement	≈ 1 × Ib lub vaj huam sib luag dav (piv txwv li, 1000 hli)	1 × Qhov Rooj Dav (piv txwv li, 1000mm)	2 × ½ Qhov Rooj Dav = Qhov Rooj Dav Dav (piv txwv li, 2000 mm)	Tsawg heev (folds tiaj tus rau phab ntsa)
Forward Space Requirement	Tsis muaj	Tsis muaj	Tsis muaj	Yuav tsum tau clearance rau pem hauv ntej extension
Sealing Performance	High (Airtight muaj peev xwm)	Siab	Siab	Nruab nrab (ntau qhov khoob)
Ua haujlwm nrov nrov	Tsawg (≤ 45 dB)	Tsawg	Tsawg	Nruab nrab (hinge kev sib txhuam)
Pem Teb Track	Feem ntau tsis muaj (Overhead khiav)	Feem ntau tsis muaj	Feem ntau tsis muaj	Feem ntau xav tau cov kab hauv pem teb
Kev Kho Kom Zoo	Nruab nrab (Multi-pulley synchronous tsav)	Tsawg	Nruab nrab	High (ntau lub hinges)
Hom Daim Ntawv Thov Scenarios	Lub tsev kho mob tseem ceeb nkag, GMP kev cob qhia, cov khoom siv hauv tsev, ntau qhov chaw lag luam thiab pej xeem	Cov chav sib tham me me, chaw ua haujlwm	Standard Lobby nkag	Thaum muaj xwm txheej ceev, muaj chaw ua haujlwm

Thaum koj qhov kev xav tau suav nrog kev qhib dav, txwv qhov chaw nyob ntawm qhov chaw ua haujlwm, thiab xav tau lub qhov rooj uas ua tau raws li cov qauv siab rau kev sib khi, kev huv, thiab kev nkag tau yooj yim-thaum tseem ua kom lub tsev huv si thiab zoo nkauj zoo nkauj-peb pom zoo xaiv lub Qhov Rooj Tsis Siv Neeg Telescopic.

Yuav Ua Li Cas Ntxuav Qhov Tsis Siv Neeg Telescopic Qhov Rooj?

Thaum qhov project xa tuaj, koj yuav tau txais cov lus qhia ntxaws ntxaws txog kev tu thiab kev saib xyuas los ntawm OWNIC. Kev tu txhua hnub tuaj yeem ua tau raws li cov txheej txheem tshwj xeeb ntawm lub qhov rooj.

1. Kev ntxuav ntawm Guide Rails thiab Pulleys

Tshawb xyuas cov lus qhia thiab cov tsheb rub tawm ib hlis ib zaug, thiab ntxuav lawv raws li qhov tsim nyog.

Txoj kev: Siv daim ntaub huv lossis lub tshuab nqus tsev tshem tawm cov plua plav thiab cov khib nyiab. Ib qho me me ntawm cov roj nplua nyeem tuaj yeem siv rau cov rub, chais, thiab cov lus qhia.

2. Kev ntxuav ntawm qhov rooj vaj huam sib luag nto

Rau iav qhov rooj vaj huam sib luag, siv cov iav tsis huv. Nyob ntawm qhov chaw ua haujlwm, ntxuav lub qhov rooj sab hauv ib lub lis piam ib zaug thiab sab nraum lub qhov rooj ib zaug txhua ob lub lis piam.

Ceeb Toom: Tsis txhob siv cov tshuaj muaj zog acidic lossis alkaline ntxuav, thiab tsis txhob muab cov khoom tawv tawv.

3. Kev tshuaj xyuas lub cev muaj zog thiab tswj qhov system

Tshawb xyuas lub cev muaj zog thiab kev tswj hwm ib zaug txhua lub hlis twg kom ntseeg tau tias lub cev muaj zog ua haujlwm zoo, tshawb xyuas qhov hnav ntawm cov hlua siv los yog rub, thiab xyuas kom meej tias tag nrho cov kev tswj hwm kev sib txuas yog ruaj ntseg (tsis xoob).

Cov neeg ua haujlwm tsis yog kws tshaj lij raug txwv nruj los ntawm kev tshem tawm lub cev muaj zog lossis tus tswj hwm. Yog tias koj ntsib teeb meem kev lag luam, thov hu rau peb.

4. Kev saib xyuas ntawm kev ruaj ntseg Sensors

Tshawb xyuas cov ntsuas kev nyab xeeb txhua hli kom ntseeg tau tias lawv nyob twj ywm huv thiab tsis muaj plua plav, thiab tias lawv qhov kev tshawb nrhiav ntau yam thiab rhiab heev ua haujlwm li qub. Thaum ntxuav, so cov sensors nrog ib daim ntaub huv si, mos; tsis txhob yaug lawv ncaj qha nrog dej.

5. Kev ntsuas kev cuam tshuam thiab kev ua haujlwm kub ntxhov

Ib zaug txhua rau lub hlis, sim lub pob xwm txheej ceev thiab xyuas kom meej tias lub qhov rooj tuaj yeem qhib tau manually thaum muaj hluav taws xob tsis ua haujlwm. Tsis tas li ntawd, xyuas kom meej tias kev sib cuam tshuam muaj nuj nqi (rau ntau lub vaj huam sib luag) ua haujlwm zoo yam tsis muaj kev cuam tshuam lossis tsis kam lees. Xyuas kom meej tias tsis muaj cov neeg taug kev nyob ze ze ze thaum ua qhov kev sim no.

6. Kev saib xyuas sab nrauv thiab ib puag ncig

Ua kom huv huv ntawm thaj chaw ib puag ncig lub qhov rooj qhib txhua hnub. Tiv thaiv kom tsis txhob muaj cov khib nyiab pov tseg, thiab zam kom tsis txhob cuam tshuam cov kab ke rau qhov chaw ntub dej uas tuaj yeem ua rau xeb lossis ya raws kev puas tsuaj rau tus maub los.
