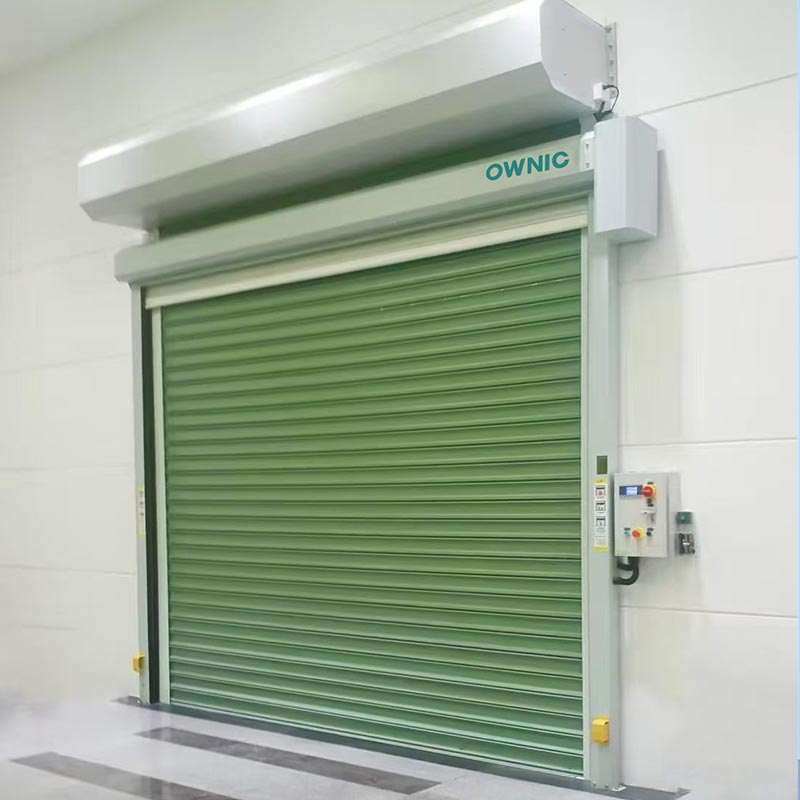

Industrial Roller Shutter Qhov Rooj

OWNIC yog cov chaw tsim khoom thiab cov chaw muag khoom ntawm cov menyuam kaw qhov rooj. Kev xaiv ntau yam thiab classic rau cov tsev lag luam, lub qhov rooj no muaj zog, ruaj khov, kaw ntom ntom, thiab txhim khu kev qha. Peb muab kev pabcuam OEM thiab 5 xyoo lav; thov koj xav tiv tauj peb txhua lub sijhawm rau kev txhawb nqa.

Technical Data:

Khoom nta

1. Kev ruaj ntseg siab

Cov slats ntawm Industrial Roller Shutter Qhov Rooj yog tsim los ntawm high-strength galvanized steel, featuring ib tug ntom thiab robust qauv uas ua hauj lwm raws li cov thawj kab ntawm kev tiv thaiv tsis tau tso cai nkag rau warehouses thiab factories.

Piv nrog rau cov qhov rooj ntawm cov ntaub, cov menyuam shutters no muaj peev xwm tiv taus qhov cuam tshuam ntawm lub cev muaj zog thiab kev tawm tsam ntawm huab cua hnyav.

2. Kev siv qhov chaw siab tshaj plaws

Thaum qhib, lub qhov rooj lub cev coils mus rau hauv lub tog raj kheej compact, zoo zoo stowed ncaj nraim saum lub qhov rooj qhib. Tsis zoo li lub qhov rooj viav vias-uas xav tau kev tshem tawm rau lawv qhov cheb arc-lossis cov qhov rooj-uas nyob hauv qab nthab nrog lawv cov kab ke-qhov tsim qauv no yog qhov tsim nyog rau cov cheeb tsam uas tsis tshua muaj tsheb thauj mus los.

3. Ntau yam muaj nuj nqi configurations

Rau qhov qhib qhov rooj loj, lub kaw lus tuaj yeem nruab nrog cov lus qhia ntxiv cua-xauv kom tiv taus cov cua daj cua dub.

Cov slats tus kheej tuaj yeem ua ib feem perforated los tsim cov qauv mesh lossis haum nrog cov qhov rais pom pob tshab.

Txhawm rau ua kom tau raws li qhov tshwj xeeb xa khoom thiab cov kev xav tau kev nyab xeeb, tshwj xeeb hluav taws kub cov menyuam shutters tuaj yeem tsim kev cai; cov no tuaj yeem muab tso rau hauv lub tsev lub tswb hluav taws kom cia li nqis los thaum muaj hluav taws kub, tiv thaiv kev sib kis ntawm cov pa taws thiab nplaim taws.

Hom Daim Ntawv Thov Scenarios

Yuav Ua Li Cas Xaiv Qhov Loj Zoo Rau Cov Menyuam Shutter Qhov Rooj?

Txhawm rau kom muaj kev nyab xeeb kev ua haujlwm thiab kev sib khi zoo tom qab kev xa khoom, nws yog ib qho tseem ceeb rau kev txiav txim siab qhov ntev ntawm Kev Lag Luam Cov Menyuam Shutter Qhov Rooj thaum lub sijhawm ua haujlwm. Qhov sib txawv ntawm qhov sib txawv tuaj yeem ua rau kev teeb tsa tsis ua haujlwm, huab cua thiab dej xau, thiab lub cev muaj zog dhau; Tsis tas li ntawd, lawv tuaj yeem cuam tshuam kev tshuaj xyuas kev nyab xeeb hluav taws lossis cuam tshuam kev tsim khoom. Kos raws li peb qhov kev paub dhau los, OWNIC muaj cov lus qhia hauv qab no los coj koj.

Kauj Ruam 1: Ntsuas qhov ntsuas qhov qhib qhov ntev

Koj yuav tsum ntsuas qhov pom tseeb qhov ntev tom qab tag nrho cov haujlwm tiav (xws li plastering lossis tiling) tiav lawm. Thaum ntsuas, thov ua raws li cov cai hauv qab no:

Dav: Yam tsawg kawg nkaus ntawm cov phab ntsa sab laug thiab sab xis (Unit: mm).

Qhov siab: Yam tsawg kawg nkaus qhov siab ntawm cov theem hauv pem teb tiav mus rau hauv qab ntawm cov qauv siv nyiaj siv ua haujlwm (piv txwv li, beam lossis suspended ceiling) (Unit: mm).

Qhov tob: Qhov tob ntawm qhov qhib qhov rooj (piv txwv li, qhov tuab ntawm phab ntsa), uas yog siv los txiav txim siab qhov tsim nyog cov lus qhia rail mounting txoj kev.

Kauj Ruam 2: Txiav txim siab Cov Menyuam Shutter Door Dimensions Raws li qhov qhib

Qhov tseeb ntawm lub cev qhov ntev ntawm lub tshuab kaw lub qhov rooj nws tus kheej tsis zoo ib yam rau qhov ntev ntawm lub qhov rooj qhib. Koj yuav tsum tso cai rau qhov tsim nyog installation clearances thiab qhov chaw rau cov menyuam shutter vaj tsev (lub thawv); peb yuav muab cov lus pom zoo tshaj plaws txog cov nyiaj tshwj xeeb no.

Kauj ruam 3: Xaiv Txoj Kev Mounting Raws li Daim Ntawv Thov Scenario

Recessed Mounting: Tsim nyog thaum muaj qhov chaw so (niche) ntawm ≥400mm qhov tob saum lub qhov rooj qhib, muab qhov tseeb qhib qhov siab yog ≥ lub qhov rooj qhov siab + lub tsev qhov siab.

Nto Mounting: Tsim nyog thaum tsis muaj qhov chaw nyob saum taub hau; chav tsev yog mounted ncaj qha mus rau ntawm phab ntsa nto, tsuas yog hais tias qhov tseeb qhib qhov siab yog ≥ lub cev qhov rooj qhov siab.

Sab Mounted Rails: Tsim nyog rau cov phab ntsa tsim nrog lub teeb-gauge steel framing lossis iav ntaub thaiv phab ntsa; cov kev taw qhia rails yog mounted nyob rau hauv ib tug ywj siab kev txhawb nqa txhua es tsis txhob cia ncaj qha rau ntawm phab ntsa qauv.

Kauj ruam 4: Dimensional Adjustments for Special Scenarios

Rau Cov Txias Txias lossis Cov Qhov Rooj Rwb: Cov menyuam kaw lub tsev yuav raug kho kom tsis txhob muaj cua sov (cov chaw txias), tab sis qhov no yuav ua rau lub tsev loj me me. Tsis tas li ntawd, 50-100mm recess (channel) yuav tsum tau tshwj tseg nyob ib ncig ntawm tag nrho ib puag ncig ntawm lub qhov rooj qhib kom haum rau lub thermal sealing trim.

Rau Cov Hluav Taws Xob Cov Menyuam Shutter Qhov Rooj: Qhov kev tshem tawm ntawm lub qhov rooj kab hlau rhuav thiab cov lus qhia yuav tsum yog ≤2mm. Kev saib xyuas qhov chaw ntawm ≥500mm yuav tsum tau tshwj tseg saum lub qhov rooj. Peb pom zoo kom ua lub qhov rooj qhov ntev 10-20mm me me rau ib sab dua li lub qhov rooj qhib qhov ntev kom ntseeg tau tias muaj txiaj ntsig zoo los ntawm kev nthuav dav thermal thaum muaj hluav taws kub.

Rau Wind-Resistant Roller Shutter Qhov Rooj: Cov lus qhia cov lus qhia yuav ua kom tuab los txhim kho cov qauv kev ncaj ncees, uas yuav ua rau kom qhov chaw yuav tsum tau ua ntxiv los ntawm 20-30mm ntawm txhua sab. Nws raug pom zoo tias qhov dav ntawm lub qhov rooj tsis pub tshaj 6000mm.
