500 kg Automatic Sliding Operator

OWNIC yog ib tus kws tshaj lij thiab txhim khu kev qha ntawm 500 kg Tsis Siv Neeg Sliding Operators. Peb tus kheej lub Hoobkas boasts ib tug ua tiav cov kab ntau lawm thiab tsis tu ncua koom nyob rau hauv lub tshiab kev tshawb fawb thiab kev loj hlob, muab ntau yam kev kho mob qhov rooj, lag luam qhov rooj, thiab lwm yam accessories. Peb cov khoom muaj kev ntseeg tau zoo, siab heev hauv kev tsim, thiab muaj lub neej ua haujlwm ntev.

Xa lus nug

Product Description

Technical Data:

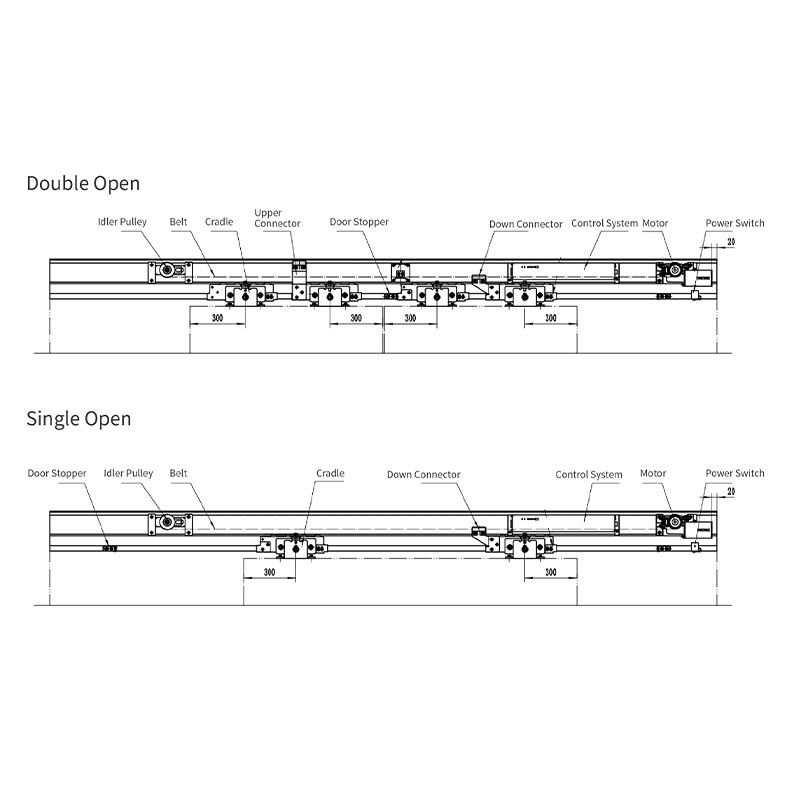

Hom Qhov Rooj:	Qhib ib leeg Ob chav qhib
Max Peev Xwm:	500 kgs 2 x Max 250 kgs
Qhov Rooj Dav:	DW = 1000 ~ 2000mm DW = 1000 ~ 2500mm
Net Qhov dav dav:	W = 2000 ~ 6100mm W = 4000 ~ 6100mm
Installation hom:	Nto Installation
Lub zog Voltage:	AC220V ± 10%, 50 ~ 60Hz
Qhib Ceev:	250 ~ 450mm / s (kho tau)
Kaw Ceev:	250 ~ 450mm / s (kho tau)
Slow Speed:	Tsis siv neeg
Tuav Sijhawm Qhib:	2 ~ 20s (kho tau)
Kev siv fais fab:	150 W
Ua haujlwm kub:	-20 ℃ ~ + 50 ℃

500 kg Automatic Sliding Operator

Core Engineering Advantages

Tsis zoo li peb 100kg, 150kg, thiab 180kg tsis siv neeg zawv zawg qhov rooj, 500 kg Automatic Sliding Operator yog ib qho kev lag luam-qib qhov rooj kaw lus uas tau dhau los kho tshwj xeeb kom tau raws li cov kev xav tau sib txawv ntawm txoj haujlwm engineering.

1. Ultra-Havy-duty qauv tsim

Thoob plaws hauv nws txoj kev tsim thiab kev tsim khoom, 500kg zawv zawg qhov rooj tus neeg teb xov tooj siv cov qib kev lag luam, lub zog siab zog thiab cov txheej txheem kev tsheb ciav hlau thickened. Nws cov khoom siv thauj khoom tseem ceeb muaj cov qauv tsim muaj zog, ua rau lawv txhawb nqa 500kg qhov rooj vaj huam sib luag nyob rau lub sijhawm ntev yam tsis muaj deformation.

2. Industrial-Grade Drive System

Powered los ntawm lub siab-tso lub cev muaj zog uas xa cov kev ua haujlwm ruaj khov, cov khoom no yog tsim los rau kev ua haujlwm tas mus li, lub sijhawm ntev. Peb tau ua kom zoo dua cov qauv kev sib kis kom txo qis qis thiab lub zog poob, kom ntseeg tau tias kev ua haujlwm du thiab ruaj khov txawm tias nyob rau hauv cov xwm txheej hnyav.

3. Kev ruaj ntseg siab thiab qis qis qis

Cov khoom lag luam ua haujlwm siab no nta cov kev tswj xyuas qhov tseeb ua ke nrog lub cev muaj zog ruaj khov. Nws ua haujlwm yam tsis muaj kev vibration lossis sib txawv ntawm lub sijhawm ntev, yog li txo qhov kev saib xyuas zaus thiab txo qhov kev pheej hmoo ntawm kev poob qis.

4. Adaptability rau ib puag ncig heev

Raws li cov khoom no feem ntau yog npaj rau kev lag luam chaw - qhov chaw uas nws yuav ntsib qhov kub thiab txias, txias txias, plua plav, lossis cua siab - nws cov qauv suav nrog kev tiv thaiv corrosion thiab plua plav pov thawj, muab cov kev hloov pauv tau zoo rau cov chaw tshwj xeeb engineering.

5. Advanced Safety Protection System

Peb tau nruab qhov rooj zawv zawg tus neeg teb xov tooj no nrog ntau yam kev nyab xeeb, suav nrog kev tiv thaiv pinch, tiv thaiv kev sib tsoo, thiab kev ua haujlwm ceev ceev. Nws txhawb kev sib koom ua ke nrog kev nyab xeeb hluav taws thiab kev ruaj ntseg, thiab tso cai rau kev qhib phau ntawv thaum muaj hluav taws xob tsis zoo lossis lub cev tsis ua haujlwm, yog li tiv thaiv ob tus neeg ua haujlwm thiab khoom siv.

Raws li qhov xwm txheej twg yog 500 kg Automatic Sliding Operator yuav tsum xaiv?

500 kg Automatic Sliding Door Operator dhau los ua ib qho kev xaiv tsis tseem ceeb-ua ntej kev txiav txim siab ntawm cov qauv siv lub teeb-thaum cov xwm txheej hauv qab no sib koom ua ke:

1. Ib Qhov Rooj Ntoo Qhov hnyav ≥ 400 kg

Ua ntej thiab foremost, qhov no yog ib tug nruj kev cai; qhov hnyav ntawm lub qhov rooj nplooj nws tus kheej tshaj qhov kev ua haujlwm muaj peev xwm ntawm tus qauv kev lag luam zawv zawg qhov rooj tswv.

Cov piv txwv ntawm cov qhov rooj hnyav xws li: laminated blast-resistant iav (20 hli los yog tuab dua) ua ke nrog cov ncej hlau, cov qhov rooj tiv thaiv cov hlau lead, cov qhov rooj insulated rau cov chaw txias txias, lub qhov rooj airtight rau chav huv, thiab cov qauv zoo sib xws.

2. Ib Qhov Rooj Nplooj Dav ≥ 2500 mm (los yog Ob Chav Qhov Rooj Dav ≥ 5000 mm)

Lub qhov rooj dav dav nthuav tawm ob qhov kev sib tw loj: qhov nruab nrab ntawm lub ntiajteb txawj nqus yog nyob deb ntawm qhov chaw tsav, yog li exponentially nce lub zog ntawm lub cev muaj zog; Tsis tas li ntawd, nyob rau hauv ob lub qhov rooj configurations, tsis muaj synchronization ntawm nplooj yuav yooj yim ua rau jamming los yog kev puas tsuaj rau cov kev taw qhia rails. Nyob rau hauv cov xwm txheej zoo li no, kev siv lub qhov rooj zawv zawg hnyav yog qhov pom zoo.

3. Daim ntawv thov nyob rau hauv Critical, Strategic-Level Passageways

Cov no yog cov chaw uas qhov kev kaw ntawm txoj kev hla dhau los ntawm qhov chaw nres tsheb tsis ua haujlwm raug txwv nruj, vim tias qhov xwm txheej no yuav ua rau muaj kev kub ntxhov loj. Piv txwv suav nrog cov tshav dav hlau thoob ntiaj teb, qhov chaw nkag thaum muaj xwm ceev tseem ceeb ntawm cov chaw kho mob hauv teb chaws lossis cheeb tsam, thiab cov ntsiab lus nkag mus rau hauv nruab nrab tswj chav rau kev kub ceev tsheb ciav hlau lossis subway systems.

4. Cov xwm txheej ib puag ncig tsis zoo

Cov neeg ua haujlwm ntawm lub qhov rooj tsis muaj peev xwm tswj tau lub sijhawm ntev, kev ua haujlwm ruaj khov nyob rau hauv ib puag ncig uas muaj qhov kub thiab txias, siab ntsev-txheej ntau, cov av noo siab, cua daj cua dub, lossis kev ua kom huv huv. Hauv cov xwm txheej zoo li no, kev hloov kho mus rau tus qauv ua tau zoo dua yog pom zoo.

5. Txoj Cai Tswjfwm lossis Txoj Haujlwm yuav tsum tau ua

Raws li kev siv lub teb chaws thiab kev lag luam cov cai tshwj xeeb rau koj qhov project qhov chaw-tshwj xeeb yog cov kev cai qhia meej meej rau kev siv lub qhov rooj tsis siv neeg hnyav-nws yog ib qho tsim nyog los xaiv ib qho kev teeb tsa uas muaj peev xwm txaus kom tau raws li qhov yuav tsum tau ua.

FAQ

Q: Puas muaj tej yam kev cai tshwj xeeb rau kev txhim kho lub qhov rooj zawv zawg no?

A: Nws yuav tsum tau mounted ncaj qha mus rau lub hauv paus qauv; nyob rau hauv tsis muaj xwm txheej yuav tsum tau ruaj ntseg rau lub teeb yuag faib phab ntsa los yog txheem txhuas square tubing.

Nws yuav tsum tau thauj mus rau ib qho I-beam, channel steel, los yog cov pob zeb ua kom muaj zog nrog qhov tsawg kawg nkaus thickness ntawm 20 cm. Qhov no yog vim hais tias lub zog shear tsim los ntawm lub qhov rooj lub cev - tshwj xeeb tshaj yog thaum lub sij hawm ntawm acceleration thiab braking - yog qhov tseem ceeb.

Q: Lub sijhawm saib xyuas kev pom zoo rau 500 kg Automatic Sliding Door Operator yog dab tsi?

A: Cov khoom no muaj cov qauv tsim tshwj xeeb nrog cov npoo kev nyab xeeb tseem ceeb, ua rau nws ruaj khov heev hauv kev xyaum. Nws tsis tas yuav tsum tau saib xyuas ntau zaus; tsuas yog ua raws li peb cov lus pom zoo txaus.

Txhua 3-6 lub hlis: Tshawb xyuas txoj kev taug qab rau txhua yam khoom txawv teb chaws, thiab xyuas qhov nro ntawm txoj siv sia synchronous lossis saw.

Txhua xyoo: Tshawb xyuas cov ntsia hlau ntsia ntawm lub qhov rooj kom ntseeg tau tias lawv tsis tau xoob vim kev co.

Lubrication: Siv cov roj nplua nyeem tsuas yog rau cov khoom hnyav hnyav hnyav; nruj me ntsis txwv tsis pub siv roj lossis roj rau saum npoo ntawm phau ntawv qhia kev tsheb ciav hlau nws tus kheej.

Hot Tags: 500 kg Tsis Siv Neeg Sliding Operator, Tuam Tshoj, Chaw tsim tshuaj paus, chaw muag khoom, Hoobkas
